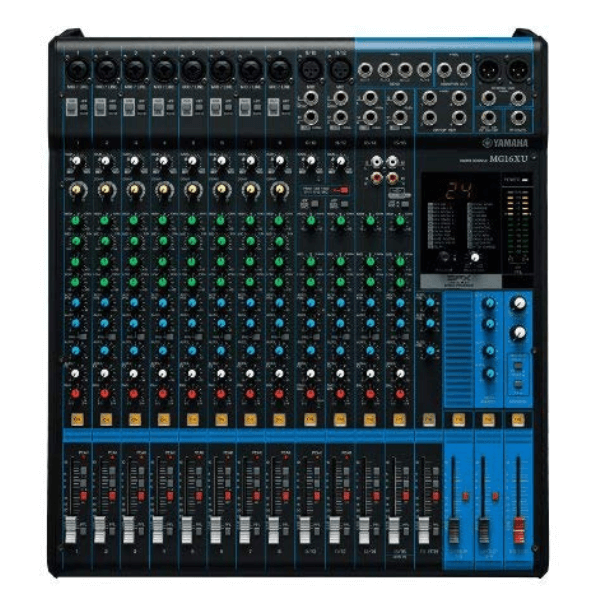

Yamaha MG16XU//E YEM Analog Mixer

• Input channels: 16 Line Inputs (8 mono, 4 stereo), 10 Mic Inputs with 48V phantom power and HPH per channel.
• Output channels: 2 ST, 1 MONITOR, 4 AUX sends, 4 GROUP, 1 PHONES.
• Bus: 1 ST, 4 GROUP, 4 AUX (incl.FX)
• Robust, impact-resistant, powder-coated metal chassis.
• Internal universal power supply for worry-free operation around the globe, even in unsteady voltage environment.
• Rack Mount Kit included.
• Discrete class A “D-PRE” mic preamps with an inverted darlington circuit.
• Professional “1-knob compressors” with LED indicators.
• Digital effects processors: 24 “SPX” effects
• 24-bit/92kHz 2IN/2OUT USB Audio Interface function.
• Cubase AI access code included for Download on the Steinberg website.
• Cubasis LE available for free download on the App Store.
• MG REC/PLAY available for free download on the App Store.


The Yamaha MG16XU Mixing Console shall be a versatile 16-channel mixer that is suitable for a wide range of users and applications. The MG16XU shall have 16 line inputs (8 mono, 4 stereo) and 10 microphone inputs with 48-volt phantom power and a high-pass filter for each channel.

Two stereo outputs, one monitor output, four auxiliary (effects) sends, four group sends, and one headphone output shall be provided.

One stereo bus, four group buses, and four auxiliary (effects) buses shall be provided. The mixing console’s microphone preamplifiers shall be discrete class-A “D-PRE” types for high sound quality. Yamaha’s 1-knob compressors with LED indicators shall be included for easy compression control.

A digital effects processor with 24 high-quality “SPX” effects shall be included to allow creative sound processing. The mixing console shall be equipped with a 24-bit/192-kHz 2-in/2-out USB digital audio interface, and shall be supplied with an access code that will allow Cubase AI music production software to be downloaded from the Steinberg website.

Steinberg’s Cubasis LE multi-touch sequencer for the iPad and Yamaha’s MG Rec&Play recording application for the iPad and iPhone shall be available for download from the App Store at no charge.
The mixing console shall be robust and built into an impact-resistant powder-coated metal chassis.

The mixing console shall have an internal universal power supply that is capable of powering the unit stably from AC mains voltages around the world. A rack mount kit shall be included.
Dimensions shall be 444 (W) x 500 (D) x 130 (H) mm (17.5″ x 19.7″ x 5.1″). Weight shall be 6.8kg (15.0lbs).

SKU: BGYU89 Category:
